規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SD6025
Product Description
  • Overall Dimension: 60×60×25 mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 10368 AWG #26 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 80 g
  • IP-Rating: IP68

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SD120625-M B 6000 12 0.17 2.04 28.1 / 47.7 9.81 / 0.39 41.1
SD120625-H B 7000 12 0.24 2.88 32.8 / 55.6 13.4 / 0.53 45.1
SD120625-U B 8000 12 0.36 4.32 37.4 / 63.6 17.4 / 0.69 48.6
SD120625-F B 9000 12 0.51 6.12 42.1 / 71.5 22.1 / 0.87 53.5
SD240625-F B 10000 24 0.7 8.4 46.8 / 79.5 27.3 / 1.07 54.4
SD240625-H B 7000 24 0.15 3.6 32.8 / 55.6 13.4 / 0.53 45.1
SD240625-M B 8000 24 0.18 4.32 37.4 / 63.6 17.4 / 0.69 48.6
SD240625-S B 9000 24 0.21 5.04 42.1 / 71.5 22.1 / 0.87 53.5
SD480625-L B 7000 48 0.08 3.84 28.1 / 47.7 9.81 / 0.39 41.1
SD480625-M B 8000 48 0.1 4.32 37.4 / 63.6 17.4 / 0.69 48.6
SD480625-H B 9000 48 0.13 5.04 42.1 / 71.5 22.1 / 0.87 53.5
SD480625-S B 9000 48 0.15 7.2 42.1 / 71.5 22.1 / 0.87 53.5

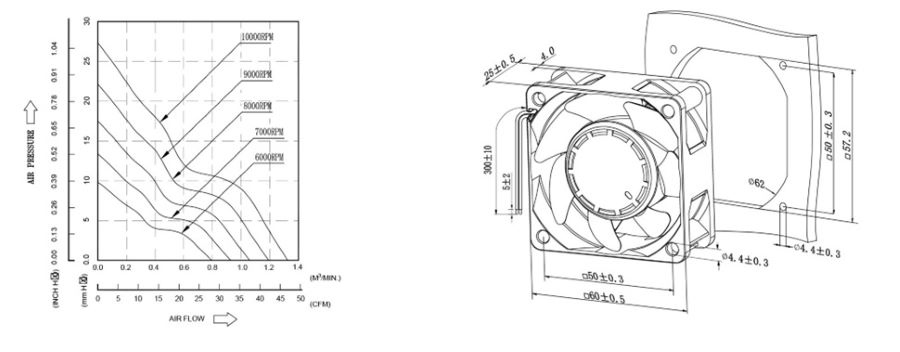

proimages/product/pro16/-yoeshin-cooling-fan-sd6025-dc-axial-fan-tech-drawing.jpg
