規格書
规格书
Specification

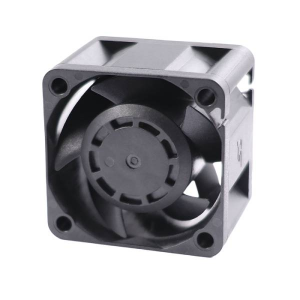

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SD4028
Product Description
  • Overall Dimension: 40×40×28mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1061 AWG #26
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 48 g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM) m³/H Max Static Pressure (mmH₂O) inH₂O Noise (dB-A)
SD120428-E B 8000 12 0.12 1.44 11.2 19.1 9.48 0.37 36.9
SD120428-L B 10000 12 0.17 2.04 14.5 24.6 14.6 0.58 42.4
SD120428-M B 12000 12 0.24 2.88 17.5 29.6 21.1 0.83 48
SD120428-H B 14000 12 0.35 4.2 20.7 35.1 28.5 1.12 51.2
SD120428-U B 16000 12 0.5 6 23.3 39.6 36.7 1.44 54.2
SD120428-S B 18000 12 0.7 8.4 26.5 45.1 47.5 1.87 56.8
SD240428-E B 8000 24 0.06 1.44 11.2 19.1 9.48 0.37 36.9
SD240428-L B 10000 24 0.08 1.92 14.5 24.6 14.6 0.58 42.4
SD240428-M B 12000 24 0.12 2.88 17.5 29.6 21.1 0.83 48
SD240428-H B 14000 24 0.18 4.32 20.7 35.1 28.5 1.12 51.2
SD240428-U B 16000 24 0.27 6.48 23.3 39.6 36.7 1.44 54.2
SD240428-S B 18000 24 0.38 9.12 26.5 45.1 47.5 1.87 56.8

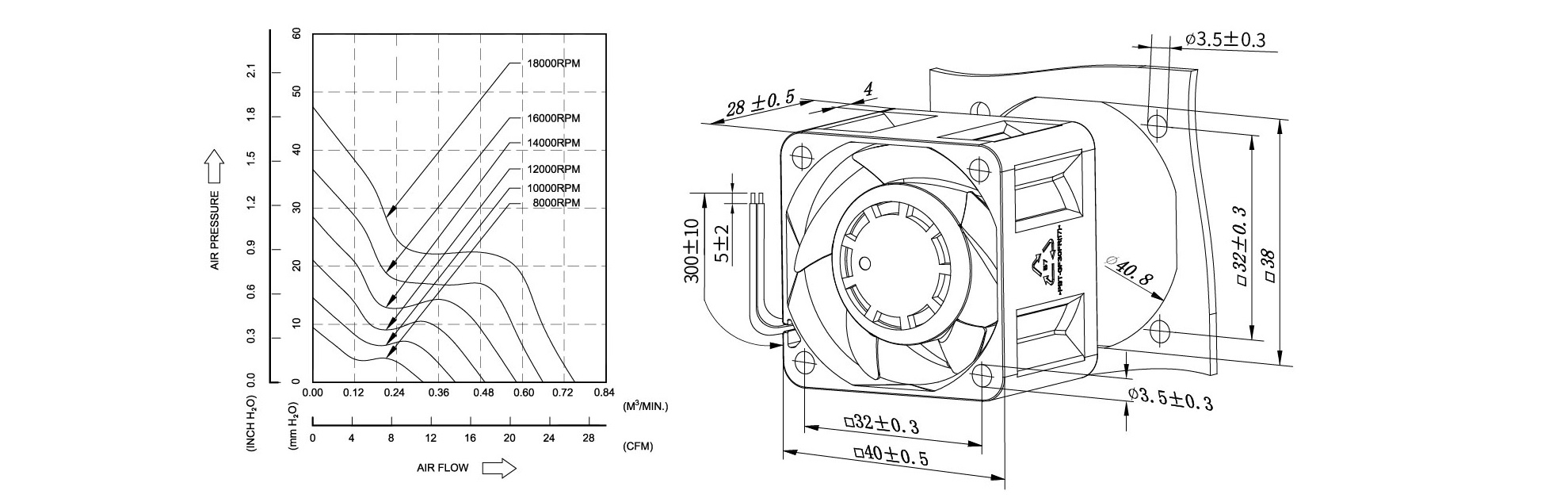

proimages/product/pro16/-yoeshin-cooling-fan-sd4028-dc-axial-fan-tech-drawing.jpg
