規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan

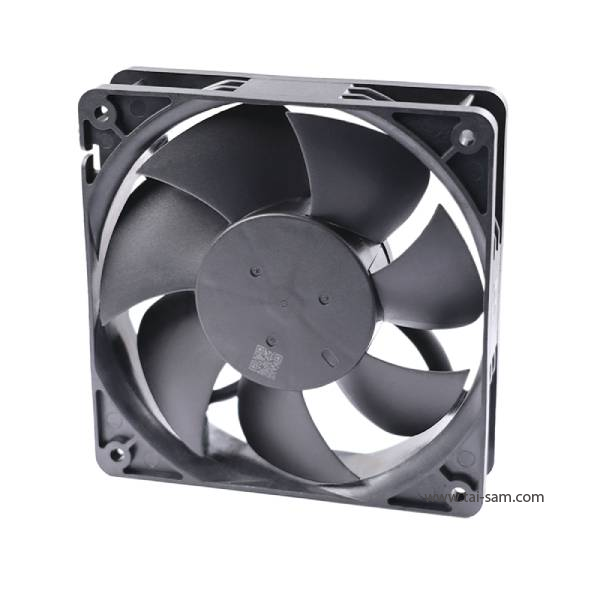

Product No : SC12025
Product Description
  • Overall Dimension: 120×120×25mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1007 AWG #24 or Equivalent
  • Impeller: 9 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 260 g

Inquiry

Print

Operation Process
Product Number B.S.R RPM VDC Amp Watt CFM mmH?O dB(A)
SC121225-L B 3000 12 0.3 3.6 93.3 158.4 42
SC121225-M B 3500 12 0.45 5.4 110.2 186.8 46
SC121225-H B 4000 12 0.59 7.08 126.5 214.9 50.2
SC121225-U B 4500 12 0.84 10.1 140.1 238 52
SC241225-L B 3000 24 0.25 3.6 93.3 158.4 42
SC241225-M B 3500 24 0.25 3.4 110.2 186.8 46
SC241225-H B 4000 24 0.33 7.92 126.6 215 50.5
SC241225-U B 4500 24 0.4 9.6 140.1 238 52
SC481225-L B 3000 48 0.07 3.36 93.3 158.4 42
SC481225-M B 3500 48 0.1 4.8 110.2 186.8 46
SC481225-H B 4000 48 0.14 6.72 126.6 215 50.5
SC481225-U B 4500 48 0.19 9.12 140.1 238 52

proimages/product/pro16/yoeshin-cooling-fan-sc12025-dc-axial-fan-tech-drawing.jpg
