規格書
规格书
Specification

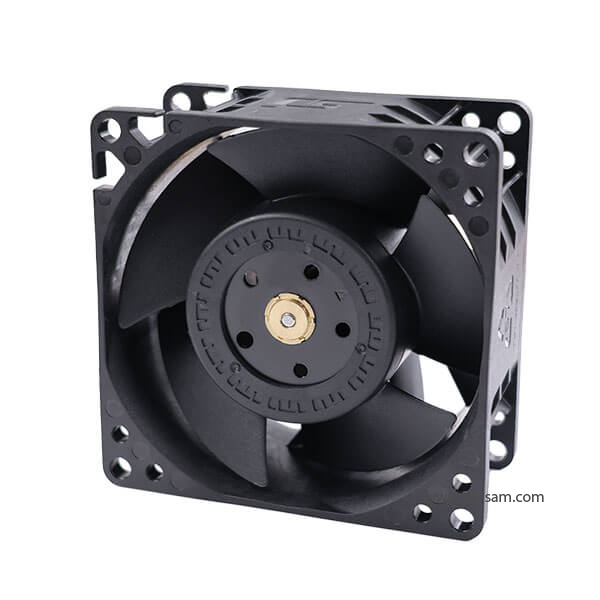

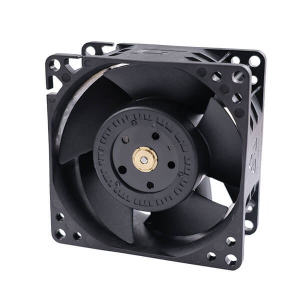

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SC8038
Product Description
  • Overall Dimension: 80×80×38 mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1007 AWG #22 or Equivalent
  • Impeller: 5 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 250 g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SC120838-H B 12000 12 1.3 15.6 96.4 / 163.7 94.0 / 3.70 63.9
SC120838-U B 15000 12 2.3 27.6 120.4 / 204.4 145.4 / 5.72 68.7
SC120838-S B 18500 12 4 48 138.6 / 235.3 159.4 / 6.28 73.3
SC120838-F B 20000 12 4.8 57.6 154.9 / 263.0 183.8 / 7.24 75
SC480838-S B 18500 48 1 48 138.7 / 235.4 159.4 / 6.28 73.3

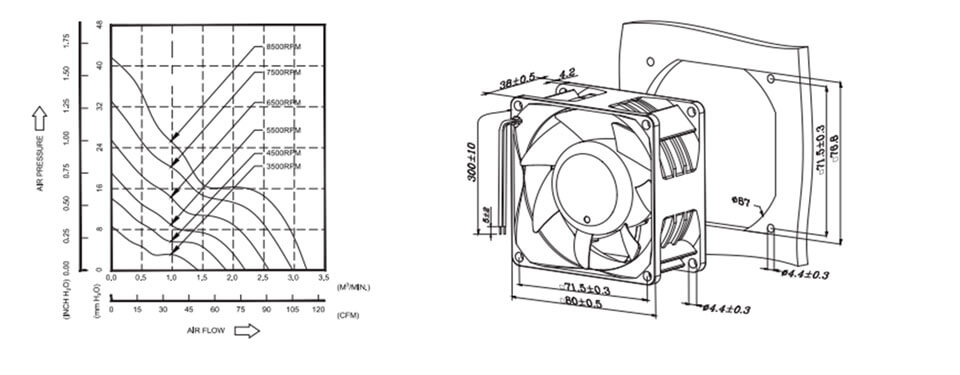

proimages/product/pro16/-_yoeshin-cooling-fan-sc8038-dc-axial-_fan-tech-drawing.jpg
