規格書
规格书
Specification

DC Centrifugal Fan

DC Centrifugal Fan
DC Centrifugal Fan
Product No : BA7530
Product Description
  • Overall Dimension: 60×60×25mm
  • Material:Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1061 AWG#26 or Equivalent
  • Impeller: 51 Blades
  • Rotational Direction: CCW from impeller side
  • Mass: 70g

Inquiry

Print

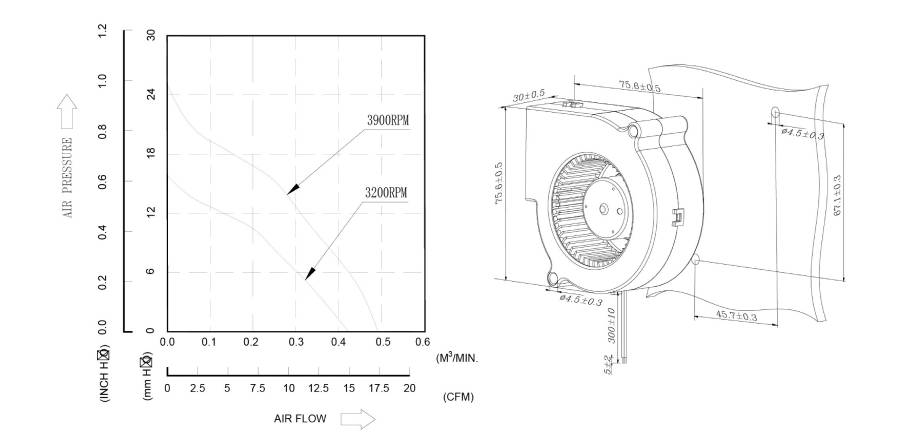

Operation Process
Product Number B.S.R RPM VDC Amp Watt CFM m³/H mmH2O inH2O dB-A
BA120730-U R 3200 12 0.23 2.76 14.3 24.3 16.8 0.66 39.8
BA120730-S R 3900 12 0.42 5.04 17.4 29.6 24.9 0.98 45
