規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SJ12038
Product Description
  • Overall Dimension: 120×120×38 mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1007 AWG#24 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 340 g
  • Working Temperature: 85°C

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SJ241238-M B 4000 24 0.32 7.68 138.9 / 235.9 10.51 / 0.41 52.8
SJ241238-H B 5000 24 0.6 14.4 173.7 / 294.9 20.16 / 0.79 57.7
SJ241238-U B 6000 24 1.05 25.2 210.5 / 357.0 35.40 / 1.38 61
SJ241238-S B 7000 24 1.53 36.7 246.4 / 418.4 47.36 / 1.86 65
SJ481238-M B 4000 48 0.2 9.6 138.9 / 235.9 10.51 / 0.41 52.8
SJ481238-H B 5000 48 0.3 14.4 173.7 / 294.9 20.16 / 0.79 57.7
SJ481238-U B 6000 48 0.53 25.4 210.5 / 357.0 35.30 / 1.38 61
SJ481238-S B 7000 48 0.73 35 246.4 / 418.4 47.36 / 1.86 65

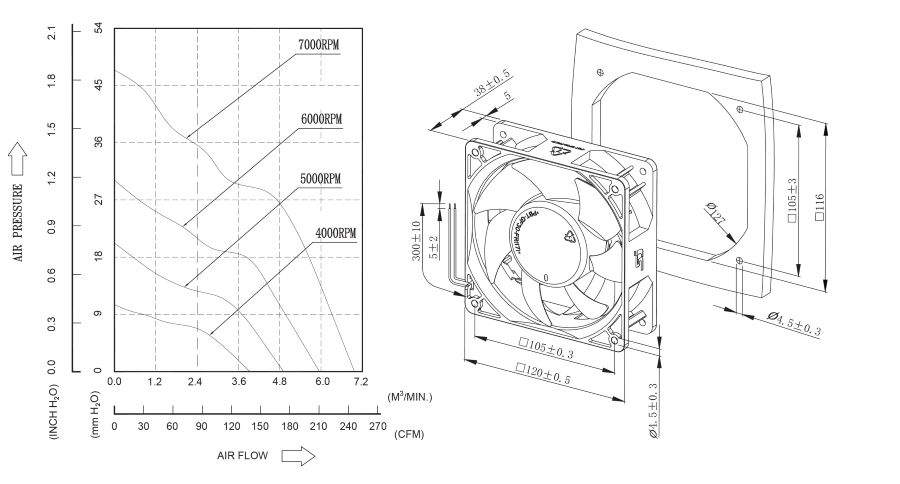

proimages/product/pro16/yoeshin-cooling-fan-sj12038-dc-axial-fan-tech-drawing.jpg
