規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan

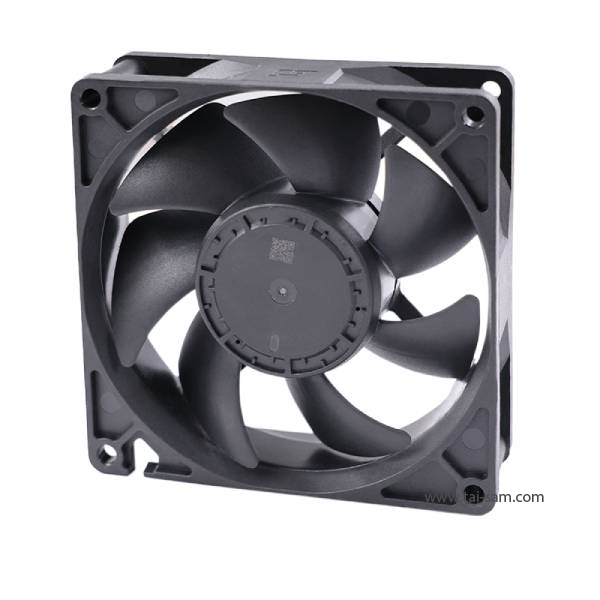

Product No : SF9225
Product Description
  • Overall Dimension: 92×92×25 mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 10368 AWG#24 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 150 g
  • IP-Rating: IP68

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow
(CFM / m³/H)		 Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SF120925-L B 3500 12 0.19 2.28 53.3 / 90.6 6.03 / 0.24 38.2
SF120925-M B 4000 12 0.28 3.36 63.7 / 108.3 7.75 / 0.31 43.7
SF120925-H B 4500 12 0.38 4.56 75.8 / 128.9 9.64 / 0.38 47
SF120925-U B 5000 12 0.57 6.84 94.1 / 159.7 14.7 / 0.58 50.5
SF120925-F B 5600 12 0.67 8.04 95.5 / 162.2 15.4 / 0.61 52.3
SF240925-L B 3500 24 0.09 2.16 58.3 / 99.0 6.03 / 0.24 40.3
SF240925-M B 4000 24 0.14 3.36 63.7 / 108.3 7.75 / 0.31 43.7
SF240925-H B 4500 24 0.18 4.56 75.8 / 128.9 9.64 / 0.38 47
SF240925-U B 5000 24 0.29 6.96 94.1 / 159.7 14.7 / 0.58 50.5
SF240925-F B 6000 24 0.4 9.6 102.3 / 173.8 17.0 / 0.67 54.3

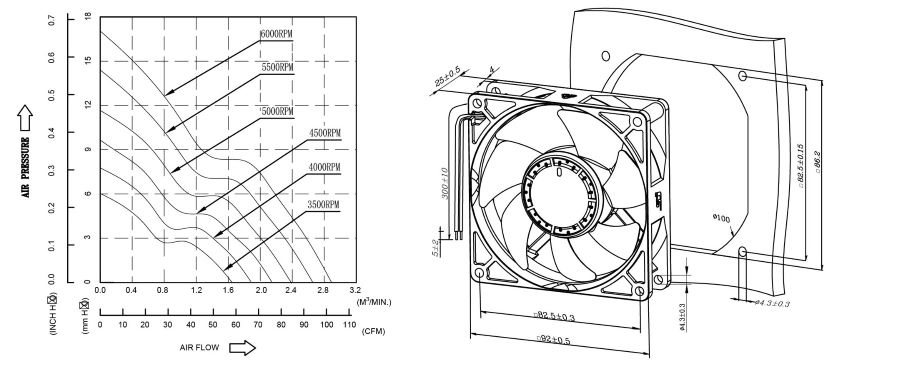

proimages/product/pro16/yoeshin-cooling-fan-sf9225-dc-axial-fan-tech-drawing.jpg
