規格書
规格书
Specification

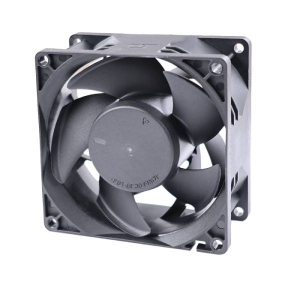

DC Axial Fan

DC Axial Fan
DC Axial Fan

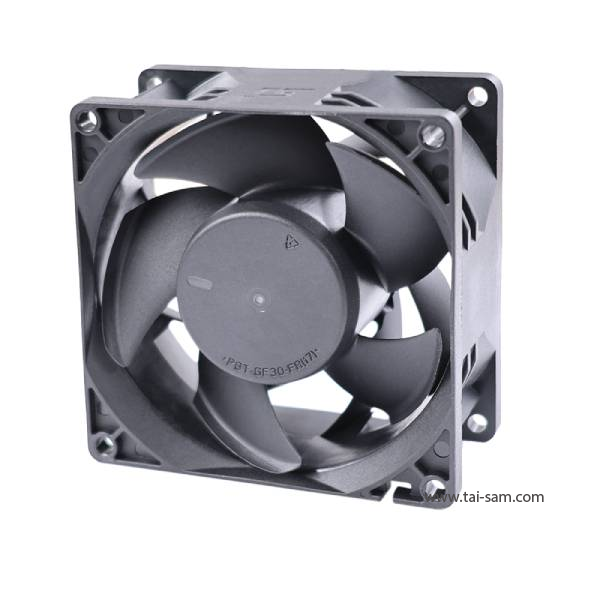

Product No : SC9238
Product Description
  • Overall Dimension: 92×92×38mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1007 AWG #24 or Equivalent
  • Impeller: 5 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 230g
  • IP-Rating: IP68

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SC120938-M B 8000 12 0.85 10.2 112.5 / 191.0 32.7 / 1.29 59.7
SC120938-H B 10000 12 1.65 19.8 140.7 / 238.9 51.1 / 2.01 64.5
SC120938-U B 12000 12 2.2 33.6 168.8 / 286.6 73.6 / 2.90 68.5
SC240938-M B 8000 24 0.45 10.8 112.5 / 191.0 32.7 / 1.29 59.7
SC240938-H B 10000 24 0.85 20.4 140.7 / 238.9 51.1 / 2.01 64.5
SC240938-U B 12000 24 1.4 33.6 168.8 / 286.6 73.6 / 2.90 68.5

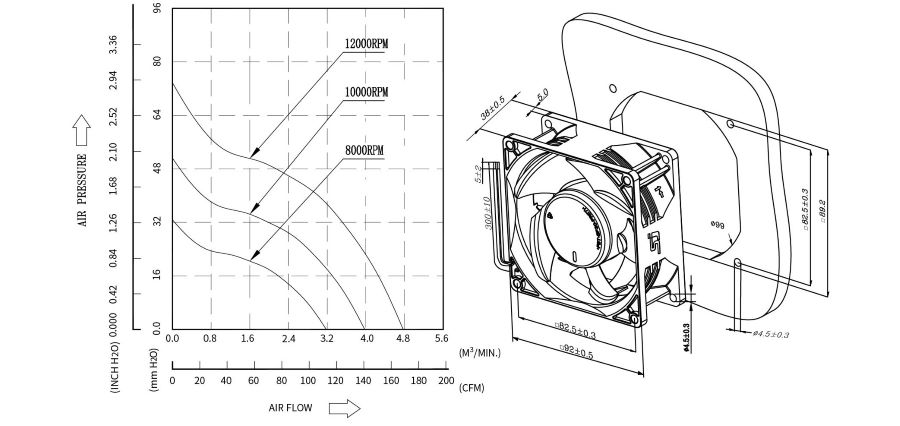

proimages/product/pro16/yoeshin-cooling-fan-sc9238-dc-axial-_fan-tech-drawing.jpg
