規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan

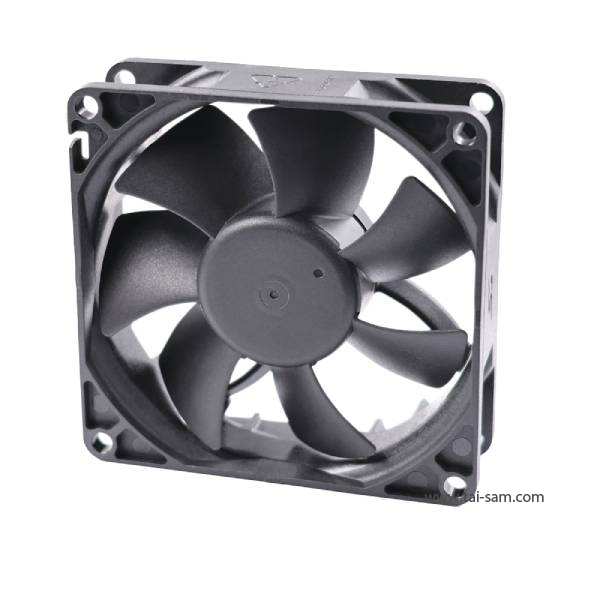

Product No : SC8025
Product Description
  • Overall Dimension: 80×80×25mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1007 AWG #26 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 80g
  • IP-Rating: IP68

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SC120825-L B 3500 12 0.18 2.16 44.4 / 75.4 6.04 / 0.24 38.1
SC120825-M B 4500 12 0.28 3.36 56.5 / 95.9 9.36 / 0.37 43
SC120825-H B 5500 12 0.45 5.4 69.1 / 117.4 13.3 / 0.52 47.9
SC120825-U B 6500 12 0.65 7.8 82.1 / 139.3 17.9 / 0.70 52.4

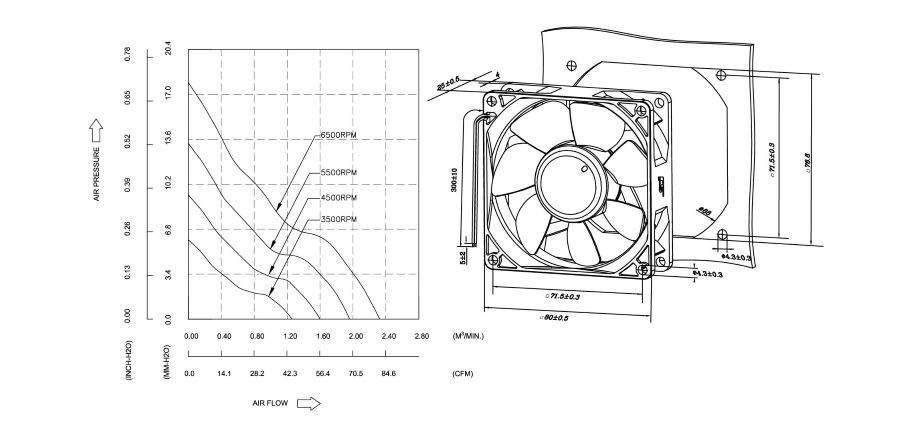

proimages/product/pro16/-yoeshin-cooling-fan-sc8025-dc-axial-fan-tech-drawing.jpg
