規格書
规格书
Specification

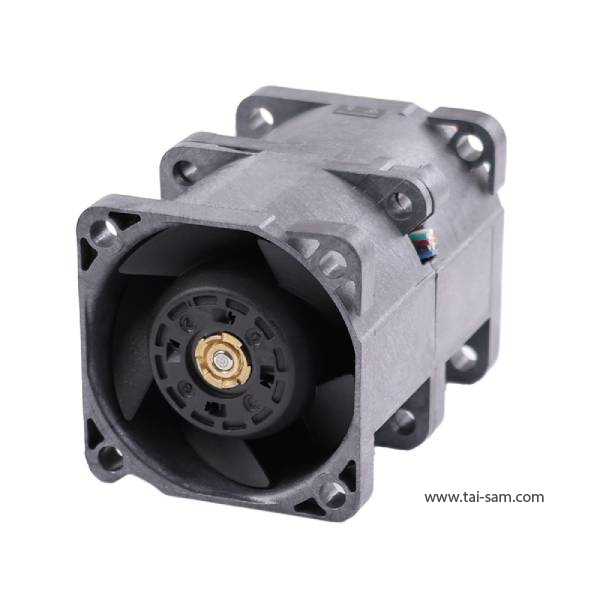

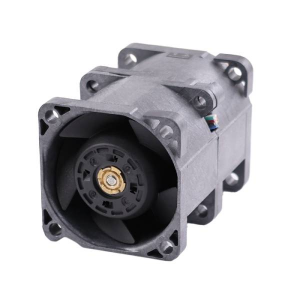

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SC4056
Product Description
  • Overall Dimension: 40×40×56mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1061 AWG #26 or Equivalent
  • Impeller: 5 Blades of Air Intake / 4 Blades of Air Outlet
  • Rotational Direction: CCW view from inlet fan blade
  • Mass: 98g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SC120456-H B 23000 / 20000 12 1.44 17.3 29.2 / 49.7 132.5 / 5.21 69.1
SC120456-U B 27500 / 24000 12 2.88 34.6 34.2 / 58.0 188.1 / 7.40 72.1
SC120456-S B 32000 / 28000 12 3.2 38.4 41.9 / 71.2 257.9 / 10.2 76

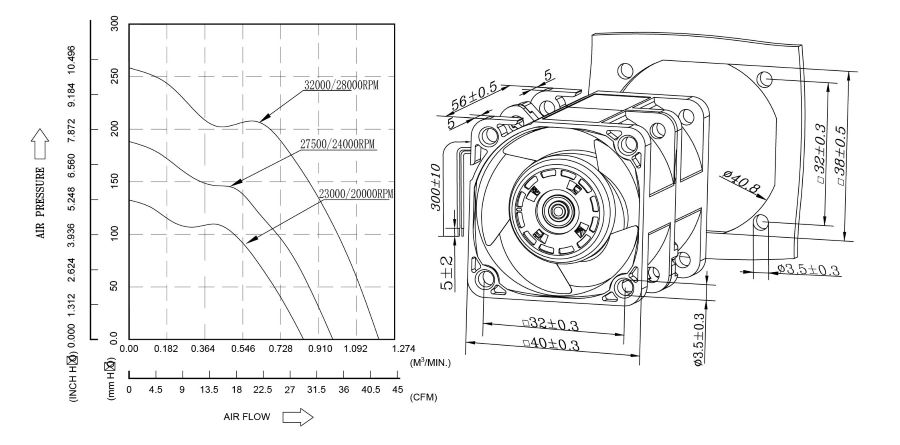

proimages/product/pro16/-yoeshin-cooling-fan-sc4056-dc-axial-fan-tech-drawing.jpg
