Specification

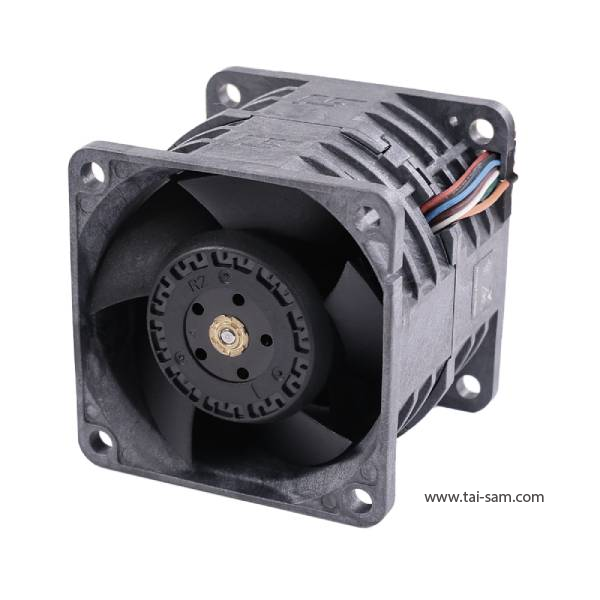

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SB6056
Product Description
  • Overall Dimension: 60×60×25 mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 10368 AWG #26 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 205 g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SB120656-S B 23000 / 23000 12 4.2 50.4 84.0 / 142.6 253.0 / 9.96 81

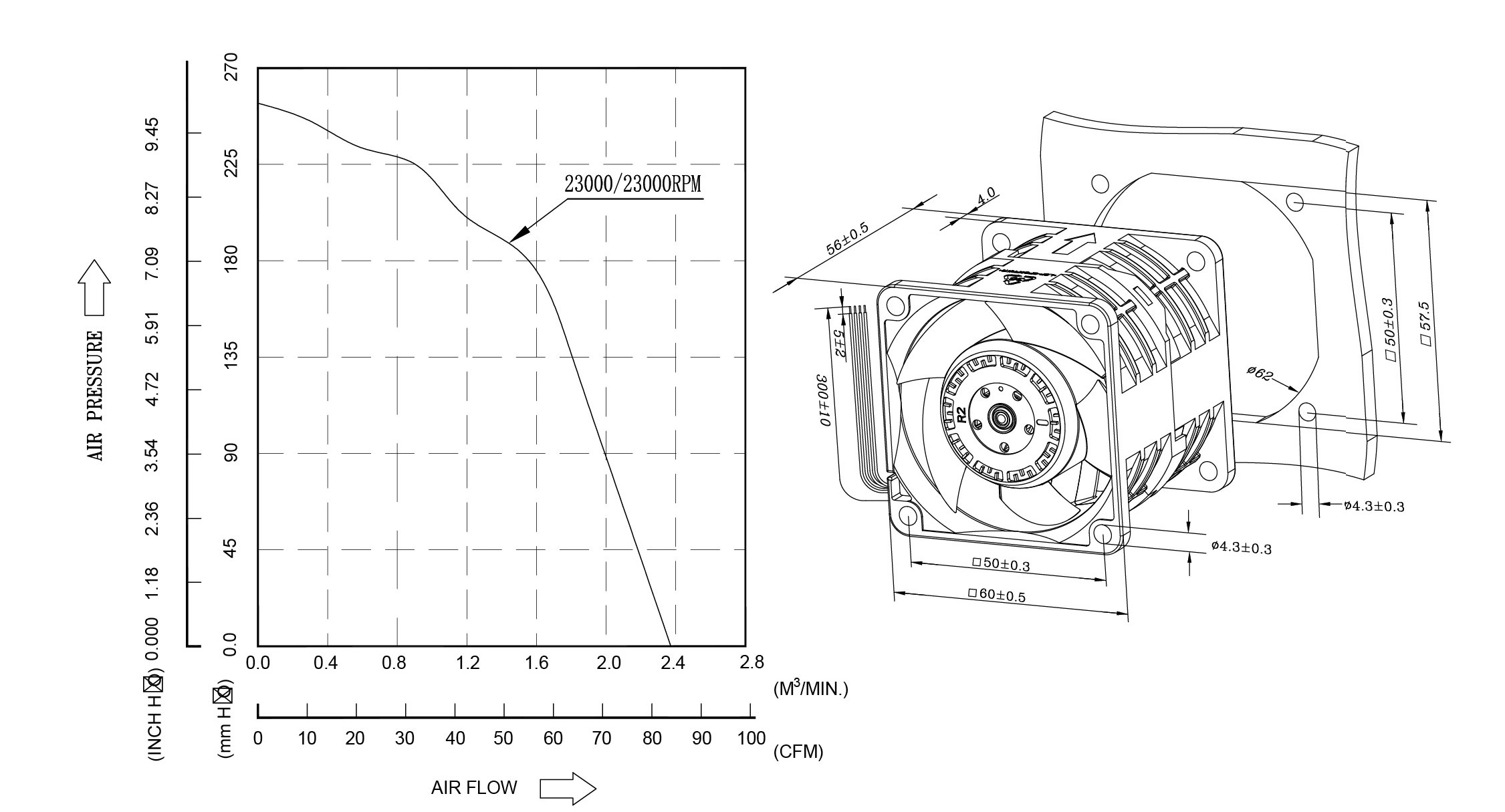

proimages/product/pro16/-yoeshin-cooling-fan-sb6056-dc-axial-fan-tech-drawing.jpg
