規格書
规格书
Specification

DC Axial Fan

DC Axial Fan
DC Axial Fan

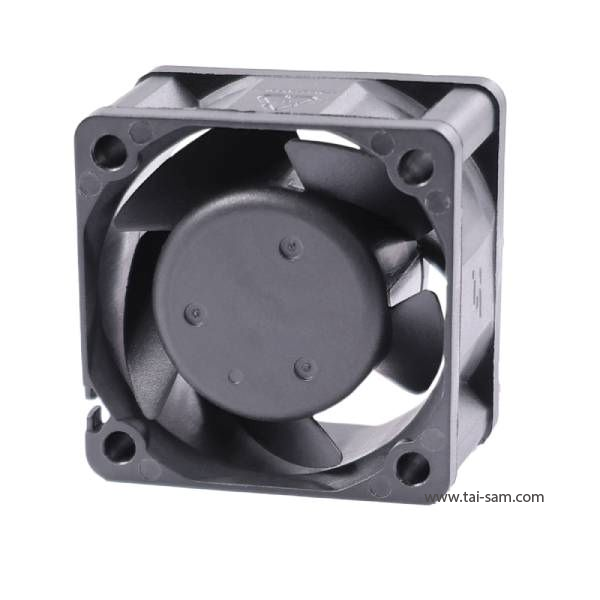

Product No : SB4020
Product Description
  • Overall Dimension: 40×40×20mm
  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1061 AWG #26
  • Impeller: 5 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 30 g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM) m³/H Max Static Pressure (mmH₂O) inH₂O Noise (dB-A)
SB120420-L B 8000 12 0.10 1.20 8.70 14.8 8.42 0.33 32.9
SB120420-M B 10000 12 0.12 1.44 10.8 18.4 12.2 0.48 37.6
SB120420-H B 12000 12 0.18 2.16 13.3 22.6 17.3 0.68 44.5
SB240420-L B 8000 24 0.05 1.20 8.70 14.8 8.42 0.33 32.9
SB240420-M B 10000 24 0.07 1.68 10.8 18.4 12.2 0.48 37.6
SB240420-H B 12000 24 0.10 2.40 13.3 22.6 17.3 0.68 44.5

proimages/product/pro13/yoeshin-cooling-fan-sb4020-dc-axial-fan-tech-drawing.jpg
