規格書
规格书
Specification

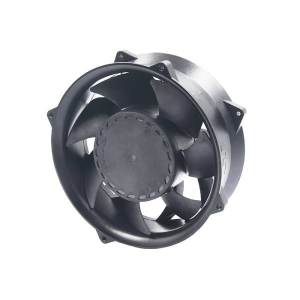

DC Axial Fan

DC Axial Fan
DC Axial Fan
Product No : SA20070
Product Description
  • Overall Dimension: 200×200×70 mm
  • Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium
  • Lead Wires: UL 1007 AWG#12 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 2540 g
  • IP-Rating: IP68

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SA482070-H B 5000 48 3.5 168 722.6 / 1227.0 60.8 / 2.39 71.3
SA482070-U B 6500 48 5.8 278.4 854.0 / 1450.1 84.9 / 3.34 74.9
SA482070-S B 7500 48 9 432 985.4 / 1673.2 113.1 / 4.45 78

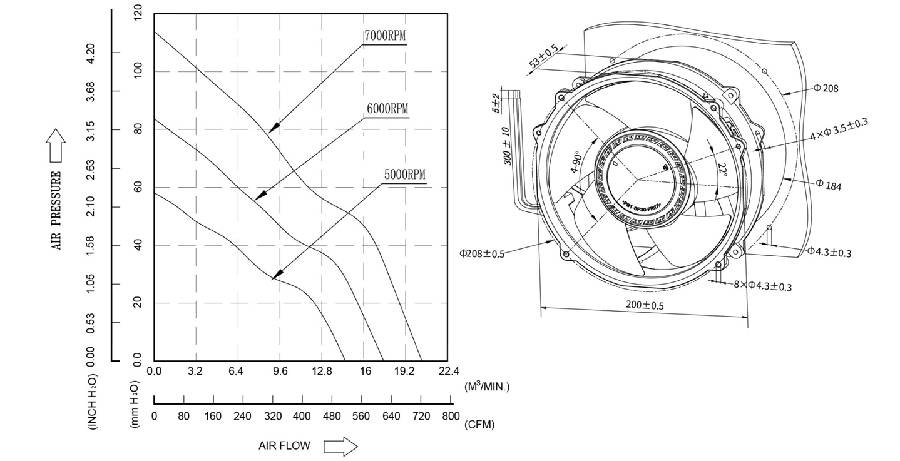

proimages/product/pro16/yoeshin-cooling-fan-sa20070-dc-axial-fan-tech-drawing.jpg
