規格書
规格书
Specification

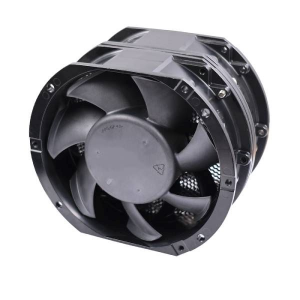

DC Axial Fan

DC Axial Fan
DC Axial Fan

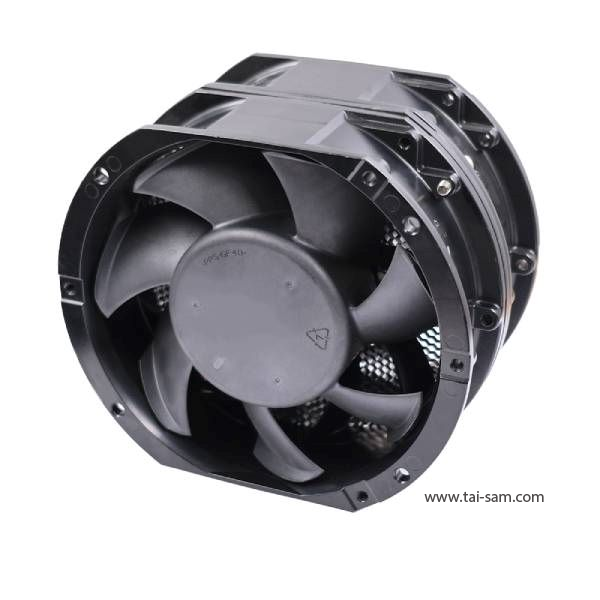

Product No : SA172102
Product Description
  • Overall Dimension: 172×150×102 mm
  • Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminum
  • Lead Wires: UL 1430 AWG #22 or Equivalent
  • Impeller: 7 Blades
  • Rotational Direction: CCW view from impeller side
  • Mass: 1800g

Inquiry

Print

Operation Process
Product Number Bearing Type Speed (RPM) Rated Voltage (VDC) Rated Current (Amp) Rated Input Power (Watt) Max Air Flow (CFM / m³/H) Max Static Pressure (mmH₂O / inH₂O) Noise (dB-A)
SA4817A0-M B 5000 48 2.5 120 415.3 / 705.2 70.7 / 2.78 76
SA4817A0-H B 6000 48 4.8 192 498.4 / 846.3 101.9 / 4.01 79
SA4817A0-U B 6500 48 5 240 540.0 / 916.9 113.9 / 4.48 81.7
SA4817A0-S B 7000 48 6.3 302.4 581.5 / 987.4 138.6 / 5.46 83.2
SA4817A0-G B 7300 48 8 384 631.3 / 1072.0 163.4 / 6.43 85

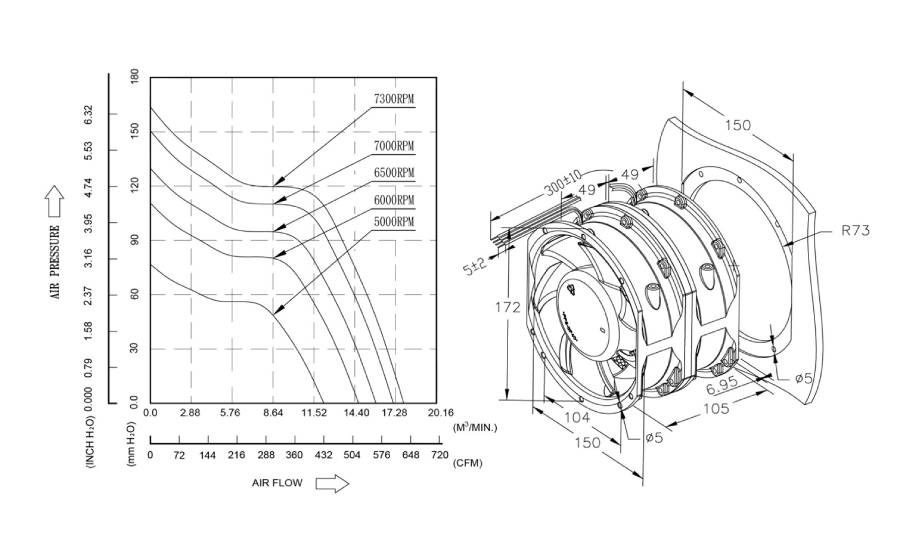

proimages/product/pro16/yoeshin-cooling-fan-sa172102-dc-axial-fan-tech-drawing.jpg
