規格書
规格书
Specification

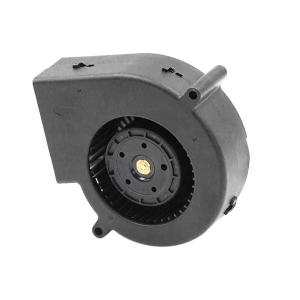

DC Centrifugal Fan

DC Centrifugal Fan
DC Centrifugal Fan
Product No : BA9733
Product Description
  • Overall Dimension： 97×94×33mm
  • Material:Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL1007 AWG#24 or Equivalent
  • Impeller: 43 Blades
  • Rotational Direction: CCW viewed from impeller side
  • Mass: 190g

Inquiry

Print

Operation Process
Product Number B.S.R RPM VDC Amp Watt Air Flow Static Pressure Noise (dB-A)
BA120933-L B 4400 12 0.96 11.5 32.4 CFM / 54.9 m³/H 44.0 mmH2O / 1.73 inH2O 56.9
BA120933-M B 4900 12 1.3 15.6 36.1 CFM / 61.3 m³/H 54.8 mmH2O / 2.16 inH2O 59.2
BA120933-H B 5400 12 1.54 18.5 38.9 CFM / 66.0 m³/H 66.2 mmH2O / 2.61 inH2O 61.6
