規格書
规格书
Specification

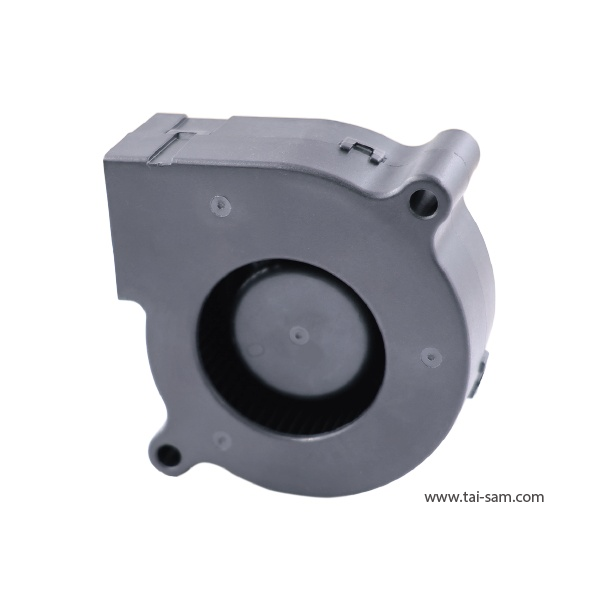

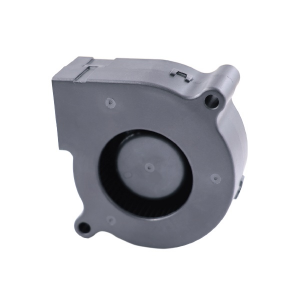

DC Centrifugal Fan

DC Centrifugal Fan
DC Centrifugal Fan
Product No : BA6025
Product Description

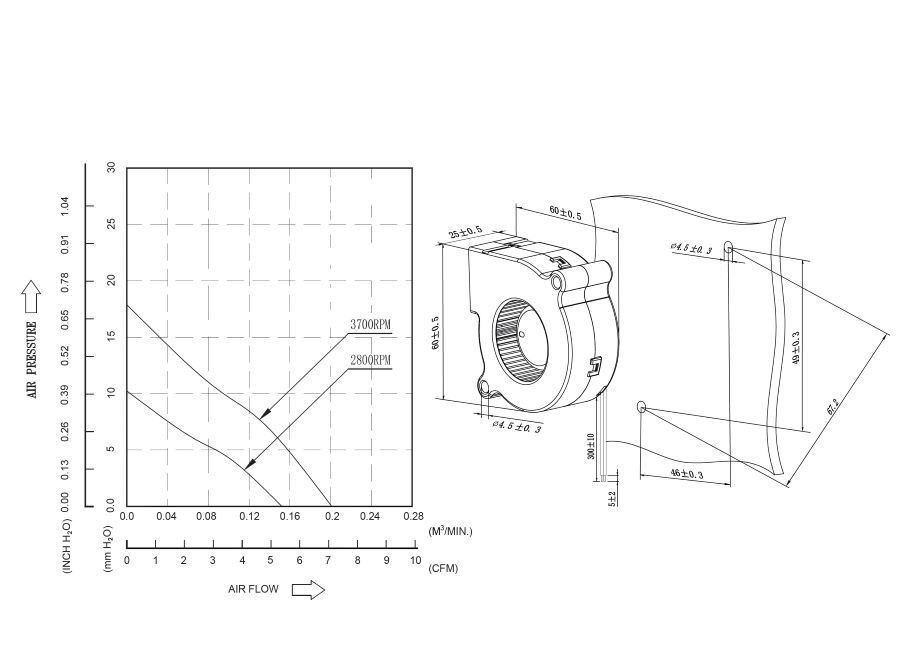

  • Overall Dimension: 60×60×25mm
  • Material:UL94V-0) / Impeller & Frame Plastic (Fire Rating UL94V-0)
  • Lead Wires: UL 1061 AWG#26 / UL 1061 AWG#26 or Equivalent
  • Impeller: 57 Blades
  • Rotational Direction: CCW View from Impeller Side
  • Mass: 50g

Inquiry

Print

Operation Process
Product Number B.S.R RPM VDC Amp Watt CFM / m³/H mmH₂O / inH₂O dB-A
BA120625-L R 2800 12 0.08 0.96 5.38 / 9.14 9.48 / 0.37 28.7
BA120625-S R 3700 12 0.16 1.92 7.11 / 12.0 16.6 / 0.65 36.5
